Available in 60 Watt to 4000 Watt.

Rugged construction.

Fly leads available.

Inductive/ Non Inductive types.

Heat Sink Panel Mounting.

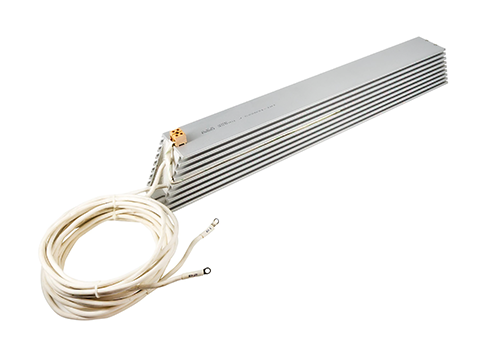

Suitable for DBR.

Insulation Resistors: 1000 Mega Ohms at 500V DC.

Dielectric Strength: 2KV for 1 minute(between terminal and body).

Temp. Coefficient: +/- 200ppm/˚C.

Short-Time Overload: 10 times rated wattage for 5sec.

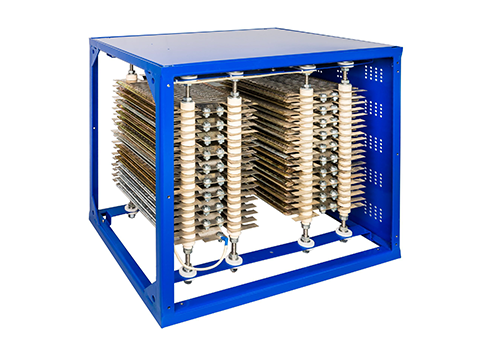

Consists of grids punched from corrosion resisting Nickel Chromium.

alloy sheet steels.

The inherent strength of the steel.

Itself is very high and owing to the pressed and

Reinforced construction the rigidity of the grids is

Completely immune to shock and vibration

High heat emission due to the large surface

Shake-proof and fracture-proof

Application fields:

• 1. High power resistor load banks

• 2. Starting and regulating resistors for motors

• 3. Discharging and testing resistors

• 4. Earthing and damping resistors
