Wire Wound Resistors

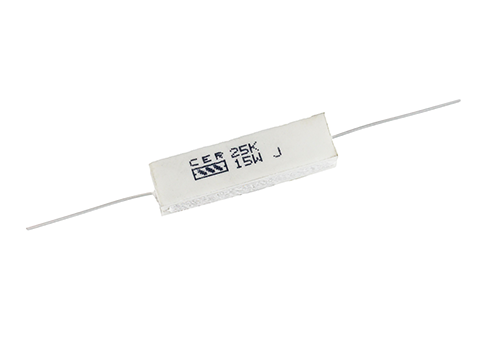

CCA Series

  • High Grade Ni-Cr Wire Wound Element on Ceramic Core

  • Encased in Ceramic & sealed with Flame proof Silicon Cement

  • Super Heat dissipation & Lower Temp. Co-efficient

  • Flame Proof & Non Combustibles

  • High Ohmic Values with MOR Element

  • Standard tolerance 1%, 2% & 5% Available

    •

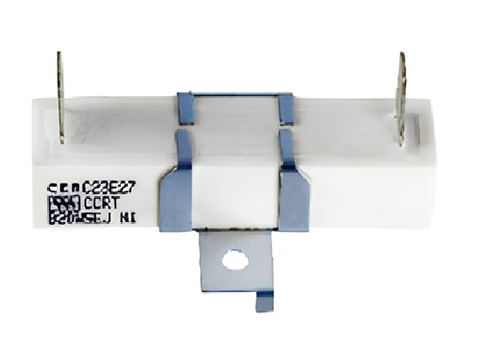

    CCRT Series

  • High Grade resistance wire wound Element on Ceramic Core

  • Encased in Ceramic & sealed with flame proof silicon Cement

  • Ceramic encased for high power dissipation.

  • High Ohmic values with MOR element

  • Standard tolerance 5% & 10%

  • Used in circuit of automatic control system, frequency conversion controls system, Power supply.

  • Available with mounting bracket which also serves as heat sink.

    •

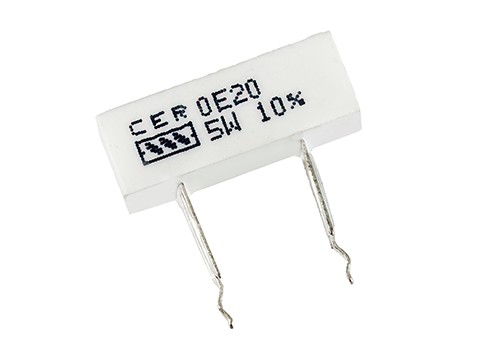

    CCT

  • High Grade Ni-Cr Wire Wound Element on Ceramic Core

  • Encased in Ceramic & sealed with Flame proof Silicon Cement

  • Choice of PCB terminal stand-off height

  • Which are adaptable to wave soldering

  • Standard tolerance 1%, 2% & 5% Available

    •

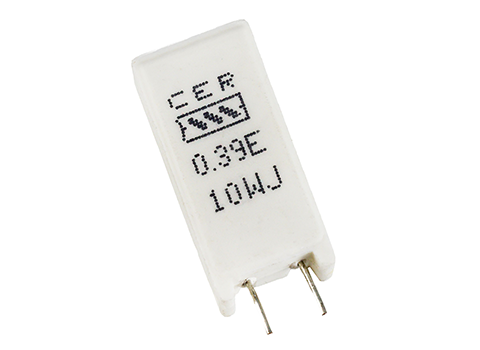

    CCV Series

  • Low cost high power resistor

  • Vertical Mounting Ceramic Stand offs Construction.

  • Designed specially for Space Saving on PCBs

    •

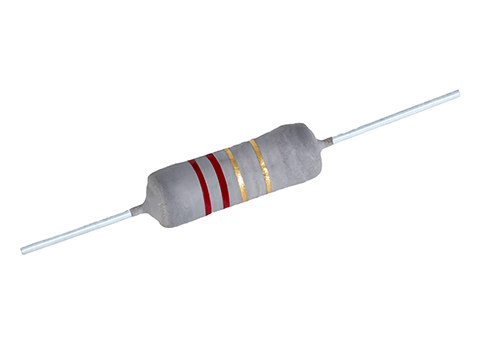

    CFUWR Series

  • Safety Grade Resistors Produced by fully automated process.

  • High Grade Ni- Cr Wire Wound Element on ceramic core

  • Functions as resistor in normal operating conditions

  • Functions as a Fuse when current overflows

  • Non-flammable silicon coated

  • Low temp coefficient, high stability

  • Colour coded or printed for easy identification

  • Wide range with standard tolerances 5%

    •

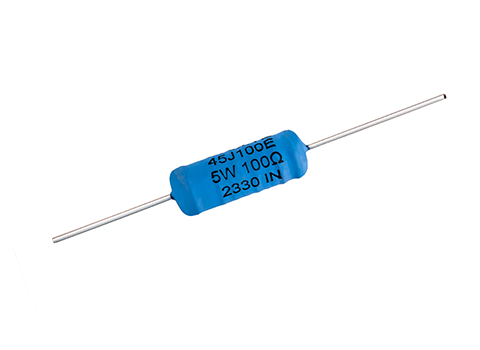

    CSIA & CMSIA Series

  • High Grade Ni-Cr Wire Wound Element on Ceramic Core

  • Coated with Heat Insulating Flame Proof Coating

  • High Surge Withstanding, suitable for energy meters.

  • Low Temp coefficient, High stability

  • Color coded or printed for easy identification

  • Aryton-Perry winding ensures low inductance

  • Standard tolerance 1%, 2% and 5% available

  • Conforming to JSS 50402

    •





    CVF Series

  • High Grade Ni- Cr Ribbon Element

  • Encased in Slim Ceramic case

  • Super Heat dissipation & Lower Temp Coefficient

  • Low Inductance

  • Flame Proof & Non Combustibles

  • Standard tolerance 5% available

    •

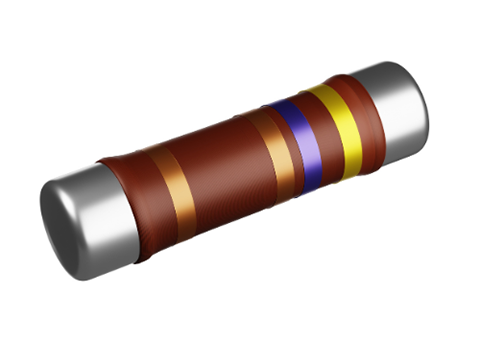

    Wire Wound Melf resistor

  • High Grade Ni-Cr Wire Wound element on ceramic Core

  • Coated with Heat Insulating Flame Proof Coating.

  • Low Temp-Coefficient, High stability.

  • Color coded for easy identification.

  • Standard tolerance 1%, 2%, 5% available.

    •



    Related products

    Flat Resistors CFHVR Series

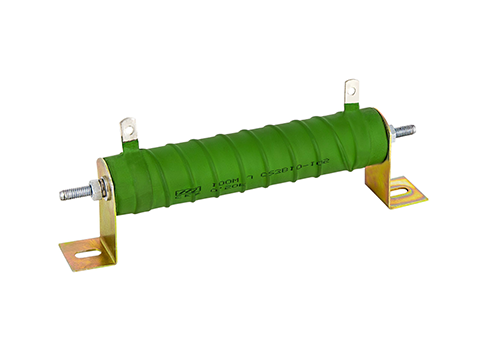

    Wire Wound Resistors
    (CSFR-Series)

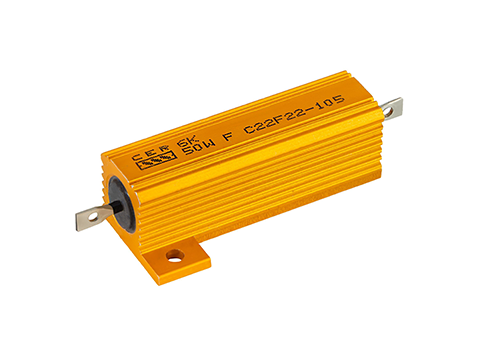

    Aluminium Housed
